Material, explained

Sensor and actuator cordsets.

Also written M12 cordset, M8 cordset, sensor cable, actuator cable.

How do I choose a sensor cordset?

Four choices, in order: the thread, M8 for compact sensors and M12 for most of a plant; the coding, A-coded for sensor signals, D-coded for 100 megabit Ethernet, X-coded for gigabit; the pin count the device names; and the run, a pigtail to a terminal or a double-ended cordset between two connectors. Straight or angled heads follow the space at the device.

Defined by The IEC 61076-2 series, which specifies the M8 and M12 circular connector interfaces, published by IEC.

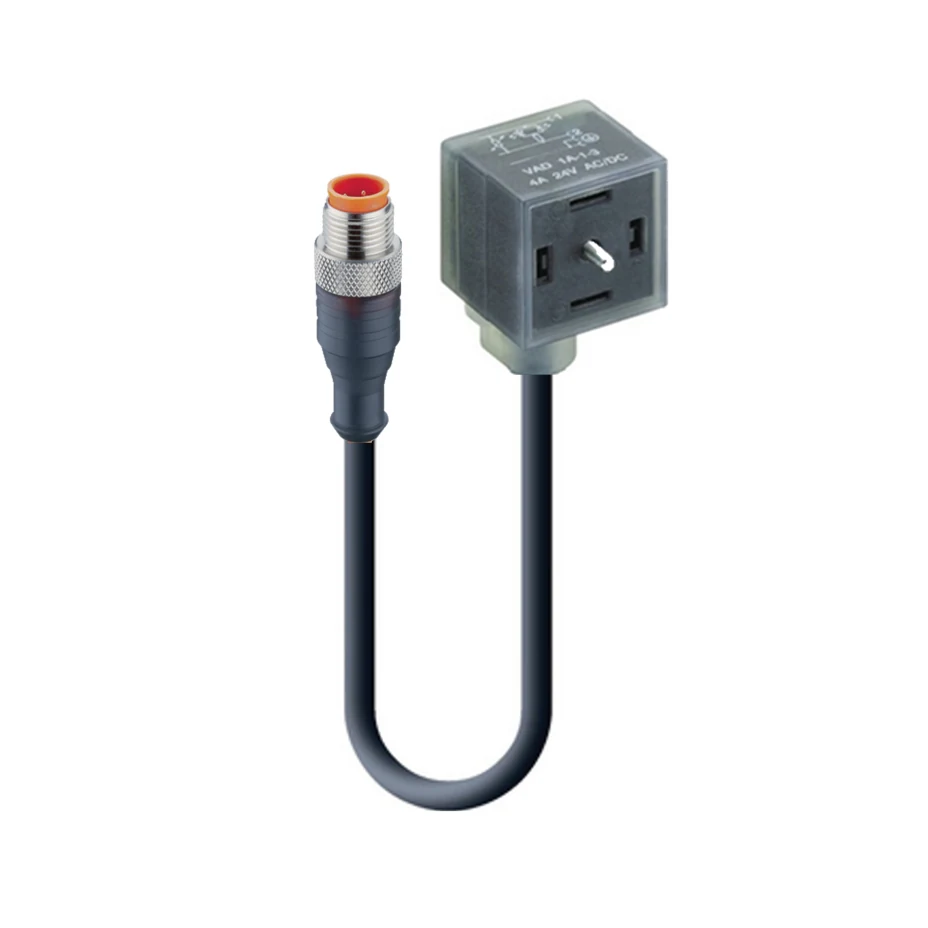

Valve Connector Cable - PUR Cable, a Sensor and actuator cordsets part supplied by Data Systems
Sensor and actuator cordsets in the catalogue: Valve Connector Cable - PUR Cable, DS-ICS-V2-1600-VALVE-CONNECTOR-CABLE-PUR-CABLE. Catalogue photograph.

Published by Data Systems, network material suppliers in Secunderabad, Hyderabad since 1984, which is 42 years of experience with these parts. Written from the standards named above. Last checked 2026-08-19. How we check this, and what we got wrong.

Data Systems, a network material supplier in Secunderabad, Hyderabad since 1984 with branches in Vijayawada and Visakhapatnam, supplies Sensor and actuator cordsets across India through official channels. Send a list, get one quote.
