SMB connectors.
Also written SMB snap-on, SMB coax connector, SMB to RG-174.
What is an SMB connector?
An SMB connector is a small snap-on coaxial connector, larger than MCX and smaller than SMA, used inside equipment and on test leads where connections are made often and a thread would slow them. It is rated to about 4 GHz and comes in 50 and 75 ohm builds. It is ordered by gender, by the cable it terminates and by cable, panel or PCB mounting.
Defined by The IEC 61169 series, which specifies RF coaxial connectors interface by interface, published by IEC.
Data Systems, a network material supplier in Secunderabad, Hyderabad since 1984 with branches in Vijayawada and Visakhapatnam, supplies SMB connectors across India through official channels. Send a list, get one quote.
SMB Connector
- SMB Bulkhead DS-ICS-V2-0514-SMB-BULKHEAD
- SMB Female Crimp RG-58 DS-ICS-V2-0499-SMB-FEMALE-CRIMP-RG-58
- SMB Female Crimp RG-59 DS-ICS-V2-0500-SMB-FEMALE-CRIMP-RG-59
- SMB Female Crimp RG-174 DS-ICS-V2-0501-SMB-FEMALE-CRIMP-RG-174
- SMB Female Crimp RG-213 DS-ICS-V2-0502-SMB-FEMALE-CRIMP-RG-213
- SMB Female Solder RG-58 DS-ICS-V2-0507-SMB-FEMALE-SOLDER-RG-58
- SMB Female Solder RG-59 DS-ICS-V2-0508-SMB-FEMALE-SOLDER-RG-59
- SMB Female Solder RG-174 DS-ICS-V2-0509-SMB-FEMALE-SOLDER-RG-174
- SMB Female Solder RG-213 DS-ICS-V2-0510-SMB-FEMALE-SOLDER-RG-213
- SMB Female-to-Female Adapter DS-ICS-V2-0519-SMB-FEMALE-TO-FEMALE-ADAPTER

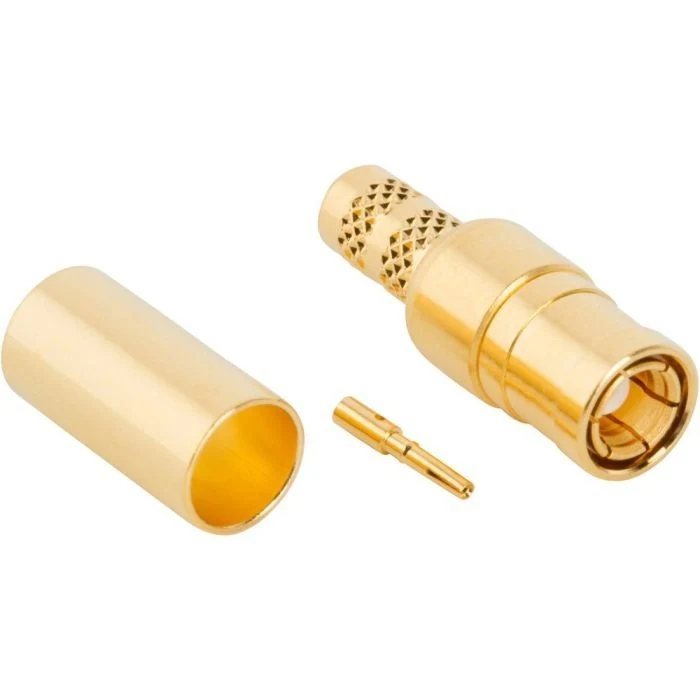

- SMB Male Crimp RG-58 DS-ICS-V2-0495-SMB-MALE-CRIMP-RG-58
- SMB Male Crimp RG-59 DS-ICS-V2-0496-SMB-MALE-CRIMP-RG-59
- SMB Male Crimp RG-174 DS-ICS-V2-0497-SMB-MALE-CRIMP-RG-174
- SMB Male Crimp RG-213 DS-ICS-V2-0498-SMB-MALE-CRIMP-RG-213
- SMB Male Solder RG-58 DS-ICS-V2-0503-SMB-MALE-SOLDER-RG-58
- SMB Male Solder RG-59 DS-ICS-V2-0504-SMB-MALE-SOLDER-RG-59
- SMB Male Solder RG-174 DS-ICS-V2-0505-SMB-MALE-SOLDER-RG-174
- SMB Male Solder RG-213 DS-ICS-V2-0506-SMB-MALE-SOLDER-RG-213
- SMB Male Terminator 50 Ohm DS-ICS-V2-0516-SMB-MALE-TERMINATOR-50-OHM
- SMB Male Terminator 75 Ohm DS-ICS-V2-0517-SMB-MALE-TERMINATOR-75-OHM
- SMB Male-to-Female Adapter DS-ICS-V2-0520-SMB-MALE-TO-FEMALE-ADAPTER
- SMB Male-to-Male Adapter DS-ICS-V2-0518-SMB-MALE-TO-MALE-ADAPTER
- SMB Panel Mount DS-ICS-V2-0513-SMB-PANEL-MOUNT
- SMB PCB Right Angle DS-ICS-V2-0512-SMB-PCB-RIGHT-ANGLE
- SMB PCB Straight DS-ICS-V2-0511-SMB-PCB-STRAIGHT
- SMB T Adapter DS-ICS-V2-0515-SMB-T-ADAPTER
